Petuelpark Bridge, Munich

Project Description

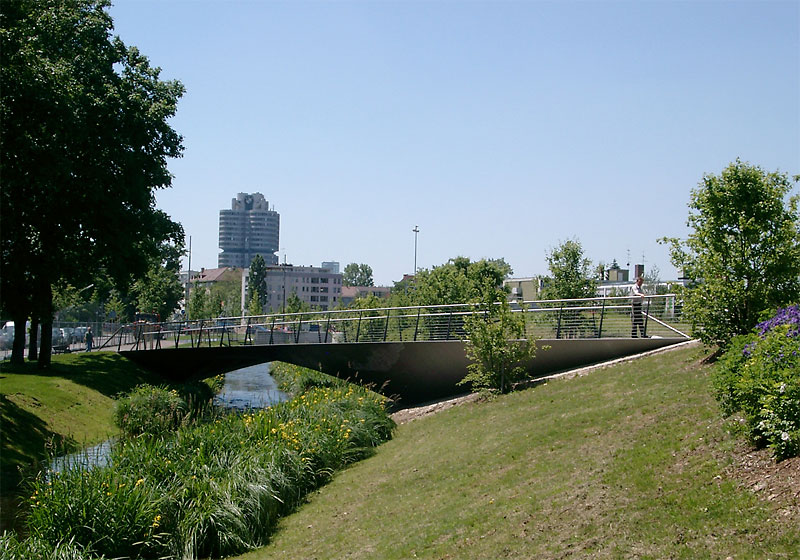

Arched steel bridge for pedestrians, oblique-angled by 45 degrees, total span of 18,0 m. Monolithically supported on piles by use of fine grain steel plates (“Stützen-Feder-Lamelle”). The walkway is built with an orthotropic steel deck and the walkway surface is coated with a “RHD”-coating. The bridge is prefabricated in one piece and mounted with a mobile crane.

Client

City of Munich, Building Authority (Baureferat)
Municipal Utility Company Munich (Stadtwerke München GmbH)

Object Planning & Construction Management

Mayr|Ludescher|Partner in working group
with architect Auer+Weber+Architekten, Munich

Structural Design

Mayr|Ludescher|Partner

Planning- & Construction-Period

2003 - 2004

Awards

Renault Traffic Design Award 2004 Acknowledgement City of Munich
