Tramway-, Pedestrian- and Bicyclebridge, Munich

Project Description

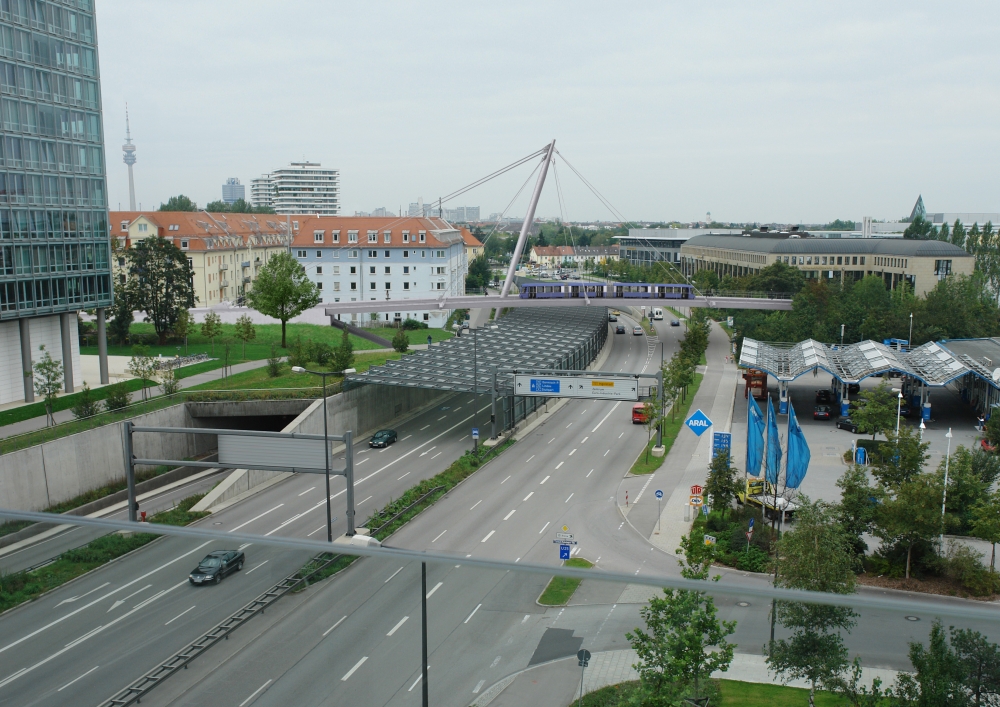

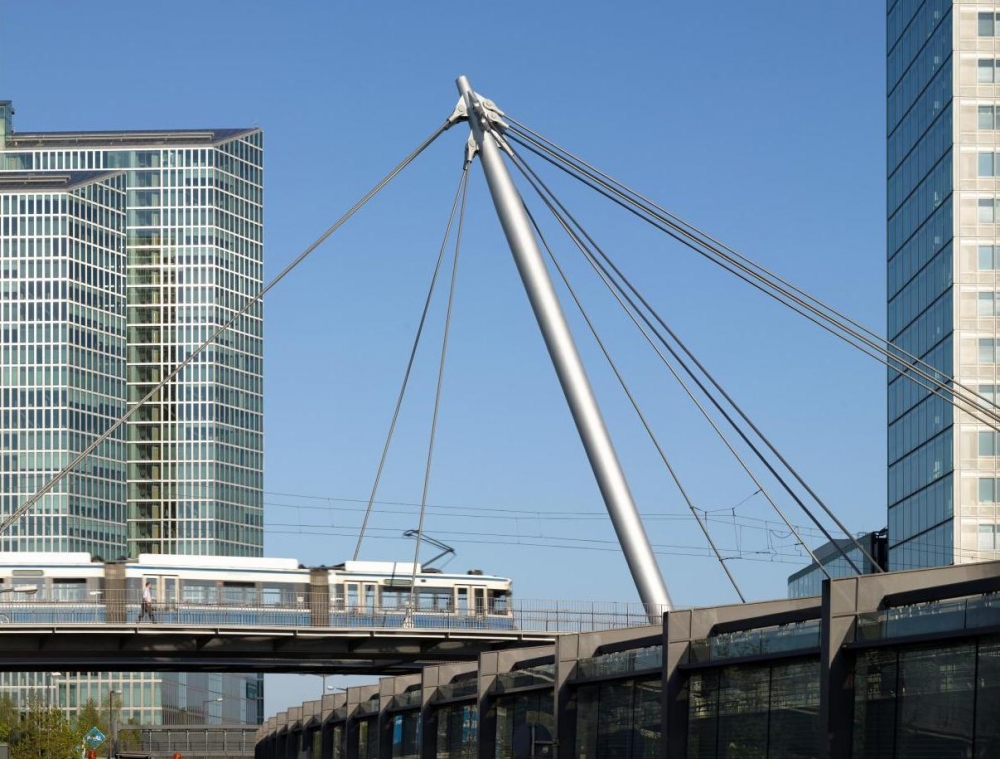

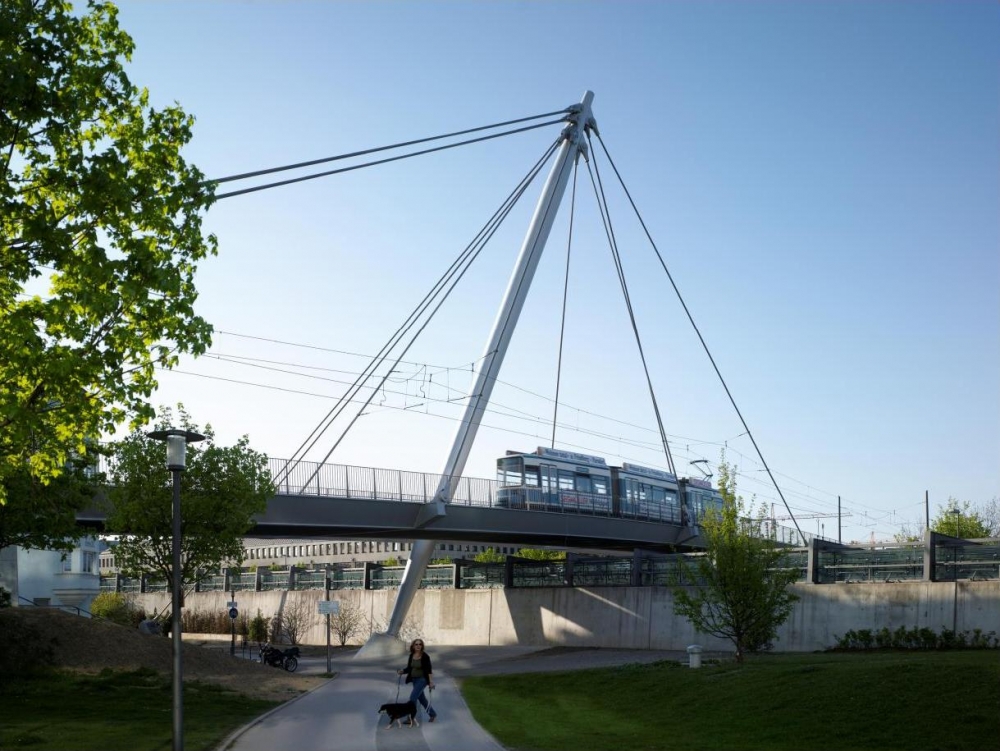

Crossing over the city highway “Mittlerer Ring” in Munich, the modern cable stayed steel bridge with a span of 84 m represents an elegant combination of tramway and footbridge, having widths of 7,5 m and 4,5 m, respectively.

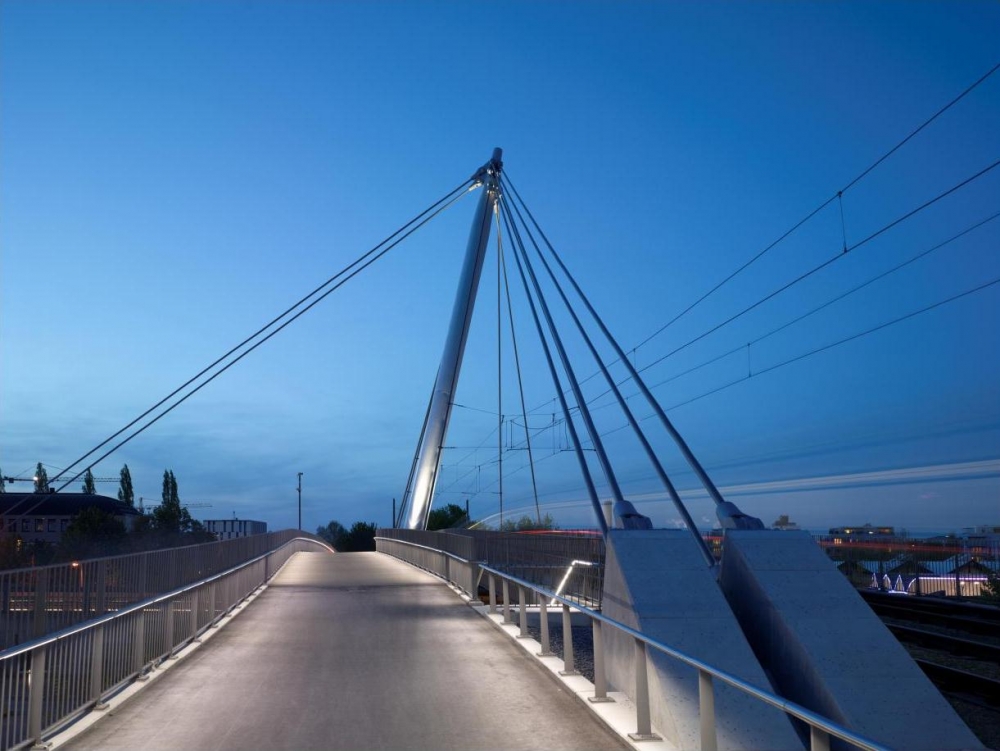

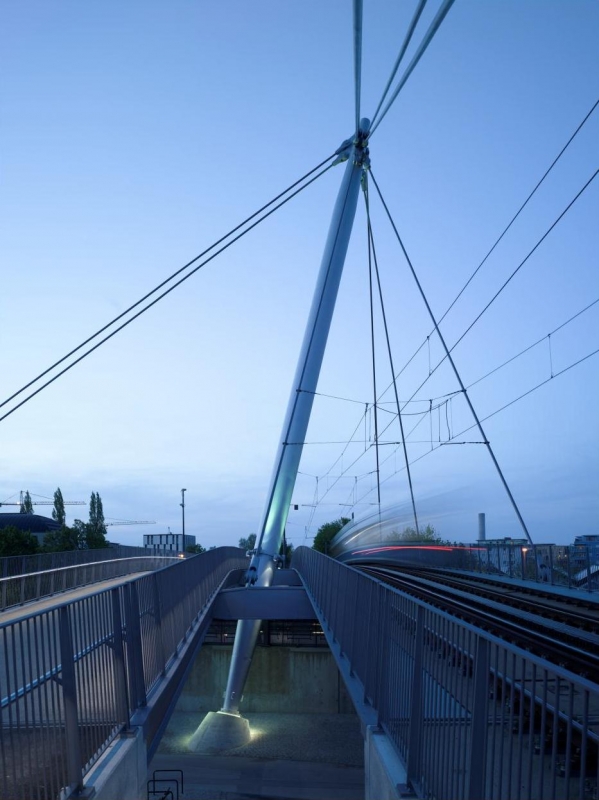

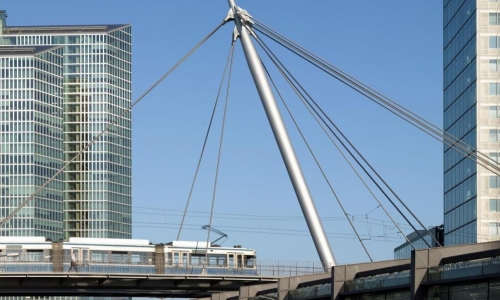

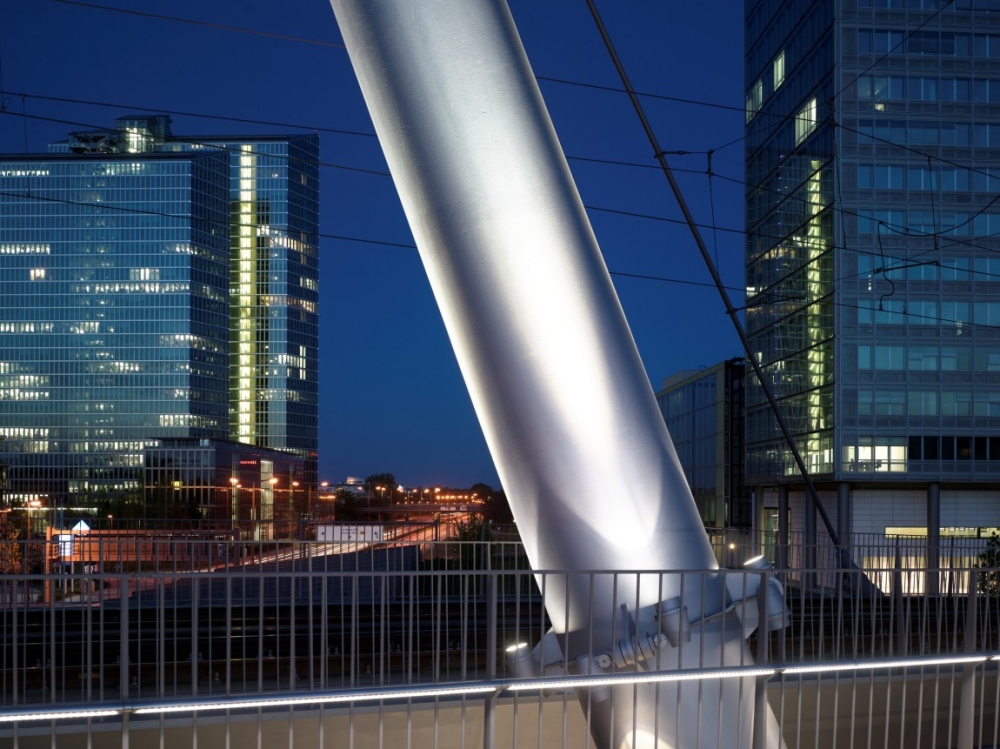

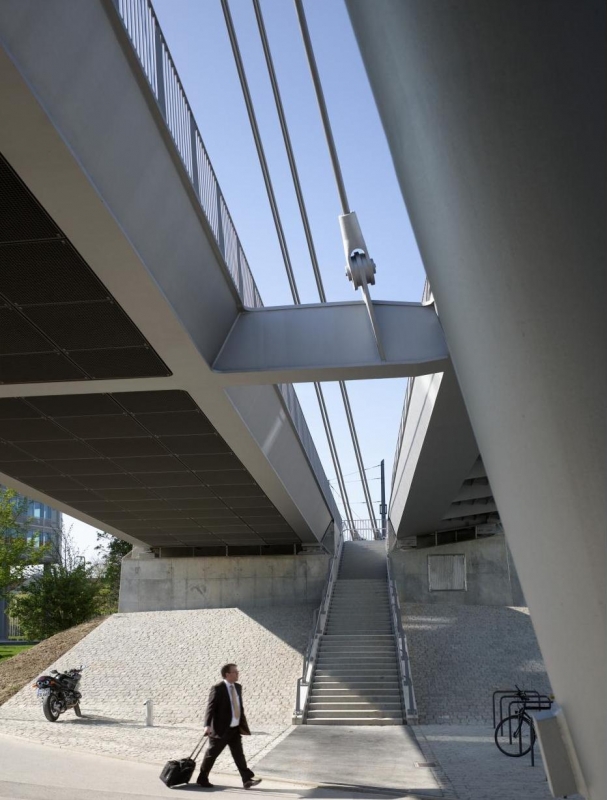

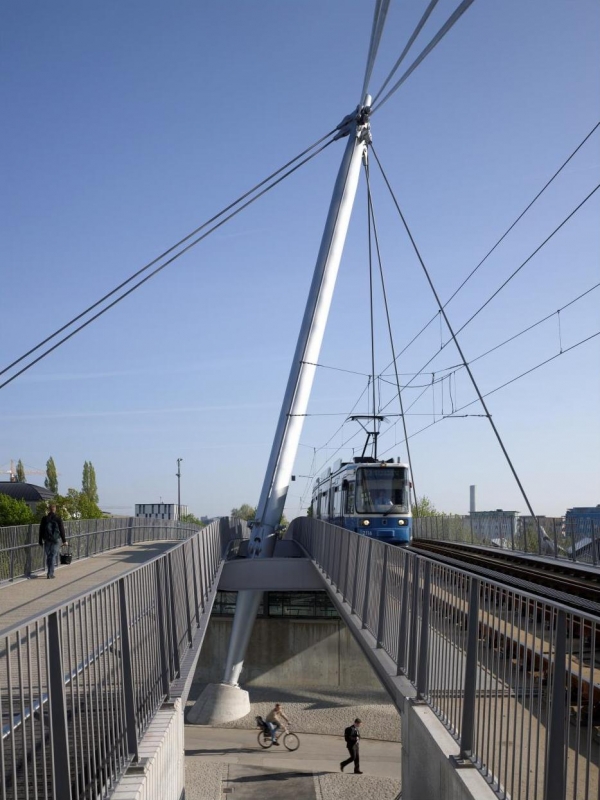

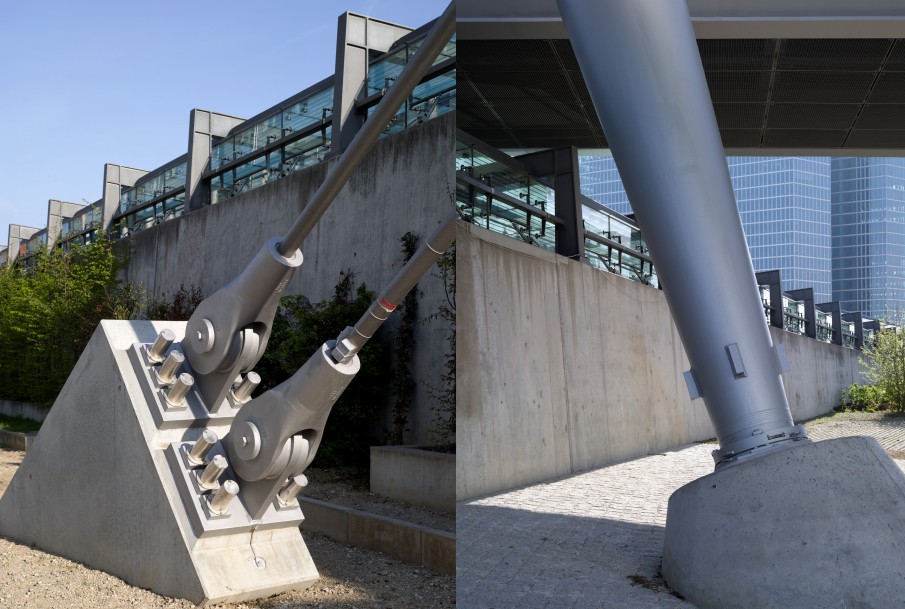

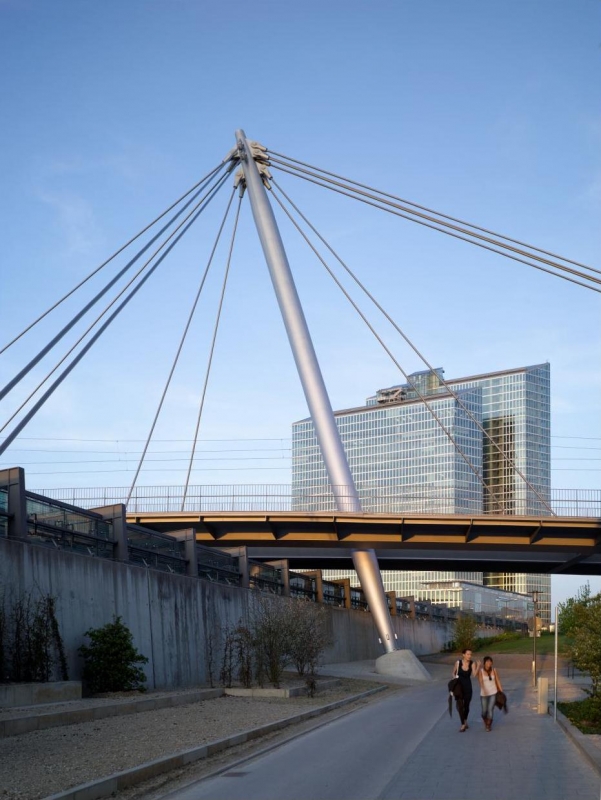

The main girders are suspended with 6 cable hangers from an inclined mast. The mast with a height of 34 m is back-anchored by cables in two directions. The tramway bridge deck is built as a steel grid consisting of two hollow box main girders. The walkway bridge deck is built as a torsional stiff hollow section with a cantilevering cross beam system.

Client

City of Munich, Building Authority (Baureferat)
Municipal Utility Company Munich (Stadtwerke München GmbH)

Object Planning & Construction Management

Mayr|Ludescher|Partner in working group
with architect Auer+Weber+Assoziierte, Munich

Structural Design

Mayr|Ludescher|Partner

Planning- & Construction-Period

2000 - 2009
